Quad-band mobile link valid for Switchboards/Ascensors/Alarms

Description

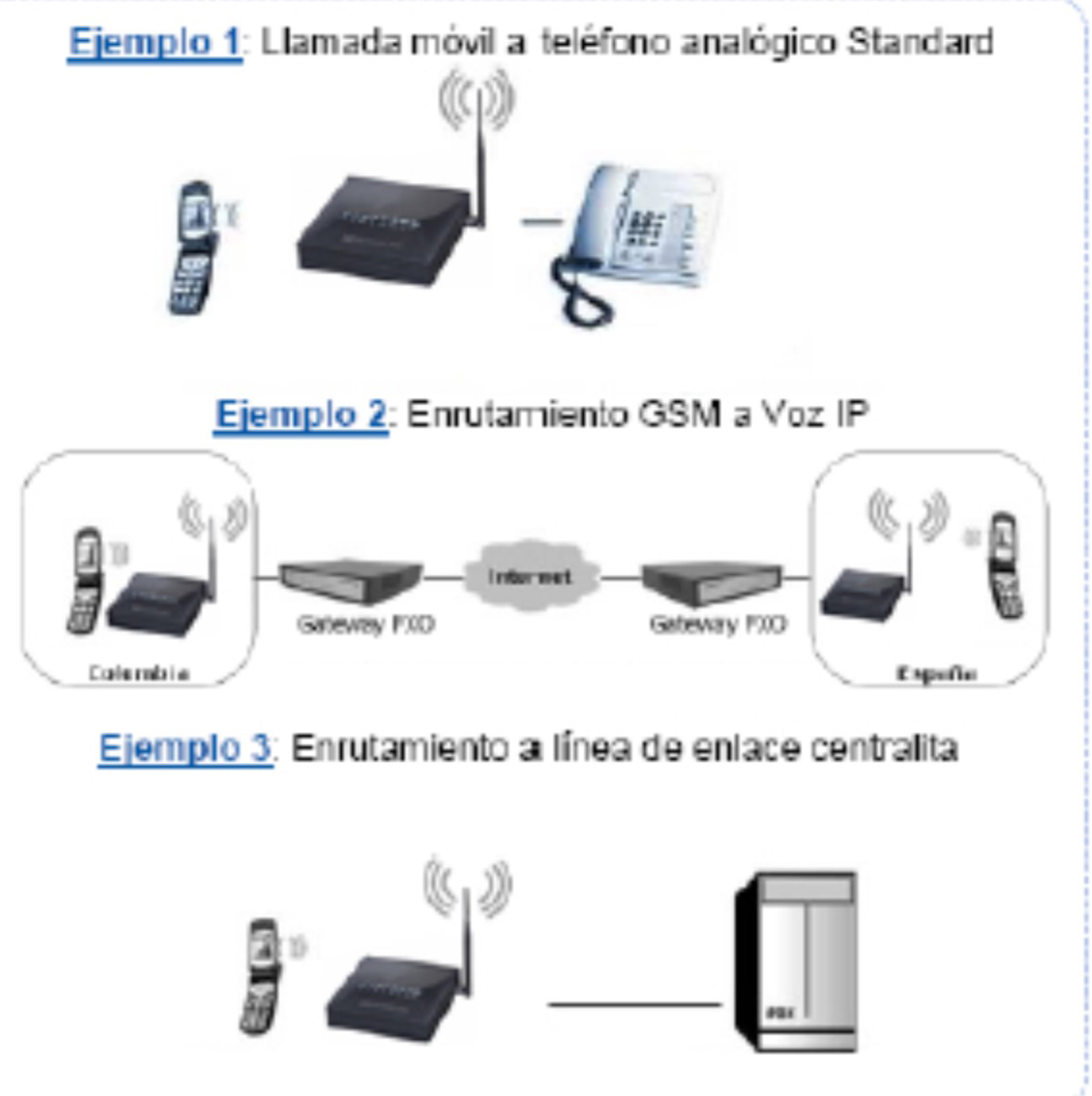

BOSSGSM-E15 is a QUATRIBAND mobile link based on GSM technology, operating on 850/900/1800/1900 Mhz frequencies. It can be applied in some areas, where telephone lines are too expensive to implement or there is some inconvenience. This equipment generates line tone from the SIM card that is installed, the user can connect it to a switchboard (trunk), telephone equipment or a conventional analog desktop phone or a DECT for example. BOSSGSM-E15 has a stand-alone battery and a power socket in case the latter fails, the equipment allows making and receiving calls without any problems. BOSSGSM-E15 does not require any configuration. all you have to do is insert the SIM card of the GSM mobile operator of your choice into its slot. From now on, you can call and receive calls on the BOSSGSM12 with a traditional analog phone, a PBX trunk or you can connect an FXO gateway to route the GSM call via VoIP to another branch or country using another GSM provider.

Ideal for use in:

• Remote and mountainous areas without a landline.
• Homes and offices with weak signal.
• Public use in elevators, phone booths, etc.
• Public establishments such as stores and bars, boats, trains, long-distance buses...
• Garages, sheds, workshops and other places without line.
• Switchboards to reduce costs in calls to cell phones.
• Security and burglaralarms.

Advantages:

• Insert your SIM card into the GSM mobile gateway terminal and use it as a cell phone: make and receive calls as usual.
• Analog phones (cordless, desktop, FXO, PBX, VoIP, etc) are connected to the terminal so that calls can be made and received over the GSM network instead of the standard copper wire, making the sound much clearer.
• The GSM mobile trunking terminal uses mobile-to-mobile technology to replace the traditional fixed-to-mobile line, so you save money! Mobile calls are already cheaper than landline calls.
• installing a PBX is expensive! Save yourself the money and install this GSM terminal that will give you a cheaper, faster and easier way to get up to date with the latest technology.
• If your PBX is installed with a fixed line, switch to this GSM terminal and save on your calls NOW.
• Comes with an antenna to improve signal in areas with poor coverage.
• Support for existing landline phone features [e.g. caller ID, speed dial, etc].
• No complicated installation or wiring required: just plug it in and call!

This GSM mobile link works with most burglar alarm systems/elevators/desktop phones/pod phones and makes calls via a cell phone SIM card, instead of the normal line

Features and functions

1) Easy to install and easy to maintain.
2) Stable industrial module and reliable design ensures good performance.
3) Provides optimized circuit which directly connects the exchange device for extensions
4) Compatible with most telephones, PBX and VoIP gateways (for call termination)
5) Connects to alarm systems to realize wireless alarm (for security application)
6) Strong signals with high gain antenna
7) sim card (1.8V, 3V)
8) Support DTMF 2'nd output calls
9) DTMF clip (caller ID)
10) Hide subscriber caller ID (has sent)
11) Provide polarity reversal signal for measurement
12) indiator signal and power-on indicator and working status indicator
13) Suitable for wide voltage range and low power consumption
14) Suitable for all kinds of climate and environment
15) Pin/network lock (optional)
16) GPRS function (optional)
17) Support IMEI change (optional)
18) Backup lithium ion (optional)
